Summary :

hardware vs software RAID

Do you know what hardware and software RAID is? What is the difference between software RAID and hardware RAID? Hardware vs software RAID which one is better? If you are trying to figure them out, probably this post of MiniTool is suitable for you.

Quick Navigation :

To improve the performance, reliability, and capacity of your hard disk, the Redundant Array of Independent Disks (RAID) is created. It is a data storage virtualization technology that can virtualize multiple independent hard disk drives into one or more arrays.

To analyze hardware vs software RAID, it is inevitable to talk about the dynamic volume. As you might know, the data on dynamic volume can be managed either by dedicated computer hardware or software.

Implementing RAID needs to use either hardware RAID (special controller) or software RAID (an operating system driver). But a great many people are unclear about their differences. So, the following part will discuss the hardware vs software RAID to help you make a decision.

10000 rpm hdd vs ssd thumbnail
10000 RPM HDD VS. SSD - How to Upgrade Your Hard Drive Safely

What are the differences between 10000 rpm HDD VS. SSD. How to upgrade your HDD to SSD without any data loss? Today’s article will tell you all the answers.

Read More

What Is Hardware RAID

Hardware RAID is a dedicated processing system that can be done completely on a separate RAID card/cabinet or the motherboard. With the hardware RAID setup, your hard drive can connect to a RAID controller card that is inserted in a fast PCle slot in a motherboard.

hardware RAID controller

Hardware RAID controller can help you improve the performance since the processing is handled by the RAID card instead of the server. The hardware RAID card can work effectively in larger servers as well as on a desktop computer. In addition, writing backups and restoring data will produce less strain when using the hardware RAID card.

Based on the hardware system, the RAID subsystem can be managed independently from the host and only one single disk is provided for the host by per RAID array. For example, a hardware RAID device can connect to a SCSI controller and present the RAID array as a single SCSI drive.

You may have an overall understanding of hardware RAID. What is software RAID? Please keep reading.

What Is Software RAID

To compare software RAID vs hardware RAID, it’s also necessary to figure out what software RAID is. When your storage drives are directly connected to the server’s motherboard without a RAID controller, the RAID configuration will be managed by the utility software in the operating system. Here this process is referred to as the software RAID setup.

software RAID

Software RAID setup is a cheaper choice compared with a hardware RAID controller. You are restricted to the RAID levels that your OS can support. In other words, software RAID has some limitations especially in terms of the configuration options.

Right now, you may have a preliminary impression of hardware vs software RAID according to the above information. Next, we will discuss the differences between software RAID and hardware RAID in detail.

msata vs m2 thumbnail
mSATA VS M.2: What’s the Difference Between mSATA and M.2 SSD

mSATA and M.2 hard drive are both popular storage devices on the market. What’s the difference between mSATA and M.2? You can get the answer from the post.

Read More

Hardware VS Software RAID

The core of a RAID system is the controller, which plays an important role in distributing data to and from the hard drives that make up the RAID array. There are 2 types of RAID controllers including hardware-based and software-based.

So, the detailed information of hardware RAID vs software RAID will be analyzed based on the RAID controllers. To give you a better understanding, we will discuss the aspects of affordability, performance, and flexibility.

Affordability

As mentioned above, the software RAID controller is more affordable than the hardware RAID controller. In terms of affordability, you can refer to the form below to overview their differences.

Software RAID controller

Hardware RAID controller

1. Lower price in general.

2. The basic RAID levels are supported by many operating systems.

3. The RAID levels are limited. If you want your hard drives to support RAID 3 and RAID 5, you need to purchase additional software.

1. The hardware enclosures with built-in support for basic RAID levels are relatively affordable.

2. You still need to pay more money for the hardware enclosures that support advanced RAID levels and more hard drives.

Tip: The basic RAID hardware that supports only striped, mirrored or other independent drives is relatively affordable.

The RAID controller uses the computing power of your PC to control the way that the data is read or written to the enclosure. Since the hardware RAID enclosures can make full use of the standard interface chipsets, the manufacturing and design costs are relatively high.

But the software RAID controllers may be as low as zero since most basic RAID levels are included in many operating systems.

Performance

In general, the more complex your RAID configuration is, the more likely the performance will be affected. Compared with the hardware-based RAID systems, the software-based RAID systems are more likely to encounter a performance issue.

Software-based systems usually can perform adequately for 3 basic RAID levels including RAID 0, RAID 1, and RAID 10. However, when using more complex RAID levels, software-based RAID programs may impact the performance of the RAID system and the overall performance of your computer.

In addition, the hardware-based RAID systems will be quicker than software-based systems when rebuilding the mirrored RAID data. Here’s a form about the differences between hardware and software RAID systems in terms of performance.

Software RAID systems

Hardware RAID systems

1. Perform adequately for basic RAID levels.

2. Performance may be affected by complex RAID levels.

1. Performance equals to software-based systems for basic RAID levels.

2. Outperform the software-based systems for advanced RAID levels.

3. Rebuild mirrored RAID data much faster than software-based RAID systems.

Flexibility

Apart from the affordability and performance, flexibility is also one aspect of hardware vs software RAID. The software-based RAID controllers are designed with the most flexibility in configuring the way that you use each drive in an enclosure.

In an enclosure with 4 drives, you’re allowed to configure 3 drives as a striped array for performance and one large drive for backup. Well, you can also configure the 4 drives as 2 independent arrays, a mirrored volume for gaming files, and a striped volume for video editing.

In other words, you can configure the 4 drives in an enclosure based on your needs. However, the hardware-based RAID systems work a single disk in the host operating system.

Software RAID controller

Hardware RAID controller

1. Offer the most flexibility to have each drive configured in an enclosure.

1. Work as a single disk to the host operating system.

2. It is easy to move an enclosure between computers and operating systems.

Impact on Computer Performance

The differences between hardware and software RAID also have an important impact on computer performance.

With a software-based RAID controller, one or more CPU cores, as well as RAM could impact other processes that are running on your computer. The extent of the software RAID controller’s impact depends on the RAID level in use and the number of drives that makes up the RAID array.

However, if you are using an external hardware-based RAID enclosure, it will produce no impact on the processor or RAM on the host computer.

partition raid5 thumbnail
Look Here! The Best Way to Partition RAID 5 without Losing Data

Many people don't know how to partition RAID 5 with reliable software. Read this post to see how to manage RAID with the best dynamic manger Minitool Partition Wizard.

Read More

Software RAID VS Hardware RAID: Which Is Better?

According to the above information, you may have an overall understanding of software RAID vs hardware RAID. Here comes a question – software vs hardware RAID which one is better?

Based on the data backup, the types of RAID will differ from system to system. Usually, it’s more common to see hardware RAID in Windows Server environments. This is because its advantages can be better realized in the Server.

Whereas software RAID is more prevalent in open-source server systems where its high flexibility and comparatively low cost can be realized better.

To give you an intuitive understanding, the pros and cons of hardware RAID vs software RAID are summarized in the form below:

Hardware RAID

Software RAID

Pros:

1. Better performance for more advanced RAID configurations.

2. More RAID configuration options to choose including hybrid configurations that may not be available with some certain OS.

3. Compatible with different OS including Windows and MAC.

Pros:

1. Low cost of entry.

2. Can easily handle RAID 0 and RAID 1 processing.

Cons:

1. More cost in the initial setup.

2. When using some flash storage arrays, you may encounter inconsistent performance for certain hardware RAID setups.

Cons:

1. It’s often specific to the OS being used. So, it cannot be used for the RAID arrays that are shared between operating systems.

2. The RAID levels that the specific OS can support will be restricted.

3. Not suitable for more complex RAID configuration.

Software RAID VS Hardware RAID: which is better? Now, I believe that you already have known the answer. No matter you choose software or hardware RAID, you need to manage the RAID drives to get the best performance. How to manage them effectively? Please keep reading the following part.

How to Manage Your RAID Drives Effectively

Although Windows offers a built-in tool (Disk Management) to manage your RAID drives, some features are not available. For example, resizing and extending volume are restricted in some situations. At this time, you need a professional and effective tool to do these works.

Here it’s highly recommended that you choose MiniTool Partition Wizard Server Edition. This powerful software can help you manage RAID partitions ranging from RAID 0 to RAID 6, and other forms like RAID 10 and RAID 50.

Apart from the move/resize feature, this powerful software boasts many other features. It can help you upgrade hard disk, convert MBR to GPT disk, change cluster size without data loss, etc.

Buy Now

If you are limited to resize your volume, you can utilize this program to move or resize the volume easily. Here’s how to do that:

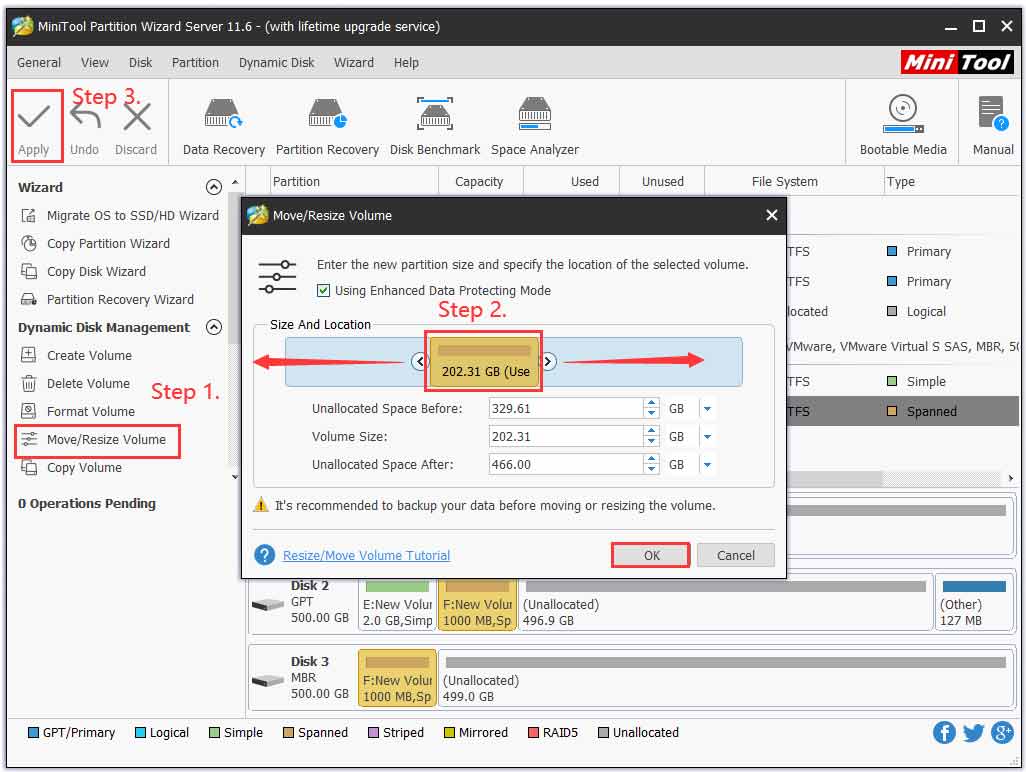

Step 1. Launch this tool to get its main interface, and then select the RAID partition that you want to manage and click on the Move/Resize Volume feature on the left pane.

Step 2. Then you can drag the handle leftward or rightward to resize the volume. If you want to move the volume to the unallocated space, just move the whole handle to change the location. After specifying the volume, click on OK to save the changes.

Step 3. Click on Apply on the upper left corner to execute the operation. After that, you will be asked to restart your computer. You just need to follow the prompt.

the process of moving or resizing the volume

What is the difference between software RAID and hardware RAID? If you are also trying to figure it out, this post will provide you with a comprehensive analysis.Click to tweet

What’s Your Opinion

Here comes the end of the post. Today we mainly focus on the software RAID vs hardware RAID. If you have any questions, please send us an e-mail via [email protected]. We also appreciate any ideas left in the comment area.

Hardware VS Software RAID FAQ

????Should I use RAID with SSD?
You can use SSD RAID arrays since it can contribute to further performance gains over HDD. The SSD RAID can be used as a complement to RAID instead of an alternative to HDD RAID.
????Which is better RAID 1 or RAID 5?
Compared with RAID 0, RAID 5 has a great improvement in the aspect of performance. The 2 types of RAID are designed with fault tolerance that can sustain a loss of one disk in the set.
????Which is the safest RAID configuration?
RAID 5 should be the most common and secure RAID configuration. It requires at least 3 hard drives and it can work with up to 16 drives. The data blocks are striped across the drives with parity in all disks.
????Is RAID a backup?
RAID arrays provide enhanced data protection, but their extra drives cannot be considered as backups. In other words, you still need to back the data up even if your main drive is a RAID array.
