When considering the right graphics card for PC gaming, NVIDIA is a good choice. How to choose between NVIDIA GeForce RTX 3060 and 3060 Ti. This post from Partition Magic will introduce the information about NVIDIA GeForce RTX 3060 vs 3060 Ti. Now, keep on reading.

In PC gaming, choosing the right graphics card can significantly affect your gaming experience. Nvidia’s two popular mid-range graphics cards, the GeForce RTX 3060 and GeForce RTX 3060 Ti, both offer solid performance.

But the differences between the two are enough to help you decide which one is more suitable for your needs. To choose a suitable graphics card, keep reading.

Boost GPU Performance | How to Make GPU Run Better via 6 Ways
Boost GPU Performance | How to Make GPU Run Better via 6 Ways

How to increase GPU performance? There are 6 available ways to boost GPU performance. You can pick one based on your preference.

Read More

NVIDIA GeForce RTX 3060 vs NVIDIA GeForce RTX 3060 Ti

In this part, we will compare the GeForce RTX 3060 vs GeForce RTX 3060 Ti performance, price, and power consumption.

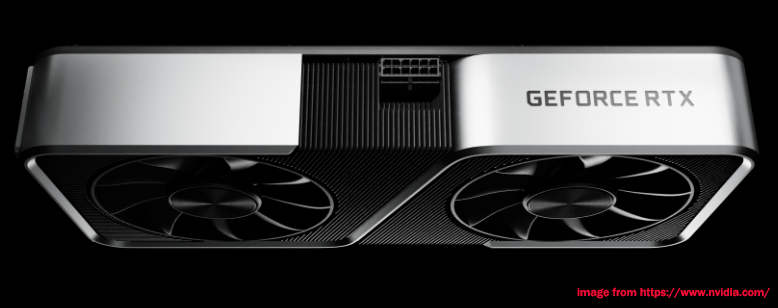

image of NVIDIA GeForce RTX

NVIDIA GeForce RTX 3060 vs 3060 Ti: Performance

#1. Core Specs

RTX 3060 TiRTX 3060
NVIDIA CUDA Cores48643584
Boost Clock (GHz)1.671.78
Memory Size8 GB12 GB / 8 GB
Memory TypeGDDR6 / GDDR6XGDDR6

The RTX 3060 Ti is equipped with a more powerful GPU, using a streamlined GA104 core (the same as the RTX 3070), with 4864 CUDA cores, 152 tensor cores, a base frequency of 1.41 GHz, and a boost frequency of 1.67 GHz.

In contrast, the RTX 3060 uses the GA106 core (the same as the low-end RTX 3050/3050 Ti), equipped with 3584 CUDA cores, 112 tensor cores, a base frequency of 1.32 GHz, and an acceleration frequency of 1.78 GHz.

#2. Memory

The RTX 3060 offers 12GB of GDDR6 memory, a configuration that will help cope with the higher demands for video memory in future games. Although the RTX 3060 Ti is only equipped with 8GB of GDDR6 memory, its video memory bandwidth is 448 GB/s (3060 is 360 GB/s).

Higher bandwidth means faster data transfer, which can make up for the lack of video memory capacity in most current gaming scenarios.

#3. Game performance

For 1080p gaming

Both graphics cards perform well. In most modern games, the average frame rate can reach at least 60 fps at the highest quality. In competitive games with lower graphics pressure, such as “Fortnite” and “CS:GO”, the frame rate can exceed 100 fps.

If you mainly use 1080p and are satisfied with 60-100 fps, the RTX 3060 is more cost-effective; if you pursue higher frame rates, especially competitive games with high refresh rate monitors, or plan to experience more complex games in the future, the RTX 3060 Ti is better.

For 1440p gaming

RTX 3060 Ti has a significant advantage. On average, it performs about 30% higher than RTX 3060 at this resolution.

NVIDIA GeForce RTX 3060 vs 3060 Ti: Power Consumption

RTX 3060 has lower power consumption, with a TDP (Thermal Design Power) of 170W, which means lower power consumption and heat generation. It is suitable for small chassis or platforms with low power efficiency, and is also easy to manage heat.

The RTX 3060 Ti has a TDP of 200W, and its power consumption and temperature are slightly higher, but modern cooling solutions can usually deal with it effectively.

NVIDIA GeForce RTX 3060 vs 3060 Ti: Price

Price is usually the core factor that consumers care about. The official suggested retail price of the NVIDIA GeForce RTX 3060 is $329, while the RTX 3060 Ti is $399.

In summary, for users with limited budgets and mainly 1080p, the RTX 3060 has outstanding cost performance. It can run most games smoothly, and the 12GB video memory also provides more possibilities for the future.

For users who pursue higher resolutions (especially 1440p) or extreme 1080p performance, the RTX 3060 Ti is worth investing in. Its stronger GPU, higher bandwidth, and better high-load performance are suitable for hardcore players who want to fully tap the potential of their PC.

Ryzen 7 9800X3D vs Ryzen 7 9700X: How to Choose Between Them
Ryzen 7 9800X3D vs Ryzen 7 9700X: How to Choose Between Them

If you are hesitant between Ryzen 7 9800X3D vs Ryzen 7 9700X, you should refer to this post. It introduces the information about them.

Read More

Bottom Line

NVIDIA GeForce RTX 3060 vs 3060 Ti: which one is right for you? The choice between the two depends on your needs.
