    What Is MBR

    MBR (Master Boot Record) is a special type of loader code at the very beginning of computers’ hard disk. It contains an operating system bootloader and the storage device’s partition table. When DOS reads hard disk, MBR will help to check whether the partition is legal and locate the partition boot information.

    And, the loader code is variable. Thus, users can boot MBR from multiple operating systems. It can be found in FDISK program. MBR will pass the control over to the certain operating system which has been registered in the partition table.

    About “Rebuild MBR”

    However, MBR could be damaged due to various attack, mistaken operation, or sudden power failure. Once MBR is damaged, we may encounter boot problems such as MBR error 3 and face black screen only. Rebuild MBR of MiniTool Partition Wizard helps rebuild MBR in quite simple operations even if Windows can not boot. That is because this partitioning program offers a bootable disc to boot computer without Windows.

    How to Rebuild MBR

    Since Windows can not boot, we need to download MiniTool Partition Wizard Bootable CD. Then, burn it to USB flash disk, CD or DVD with burning software. Next, put the bootable disc to CD driver and boot computer to get the following interface:

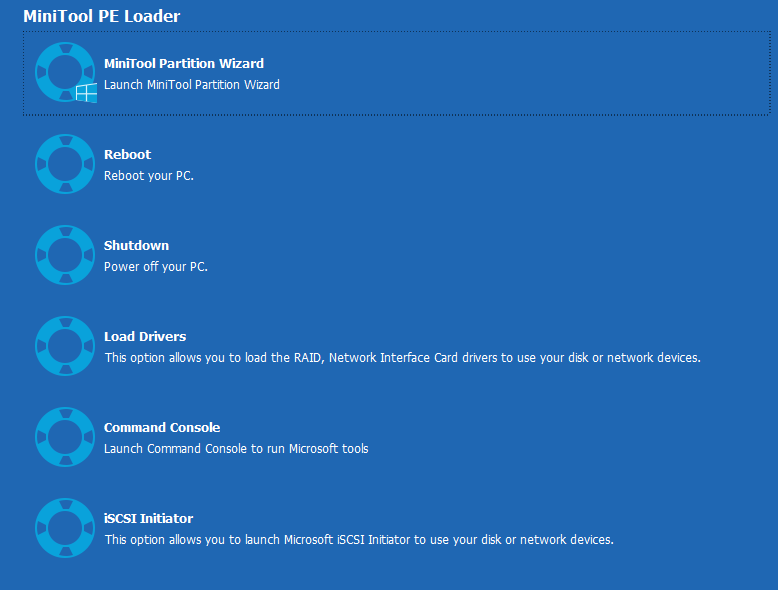

    rebuild MBR 1

    Here, please choose one of boot modes and press on Enter key..

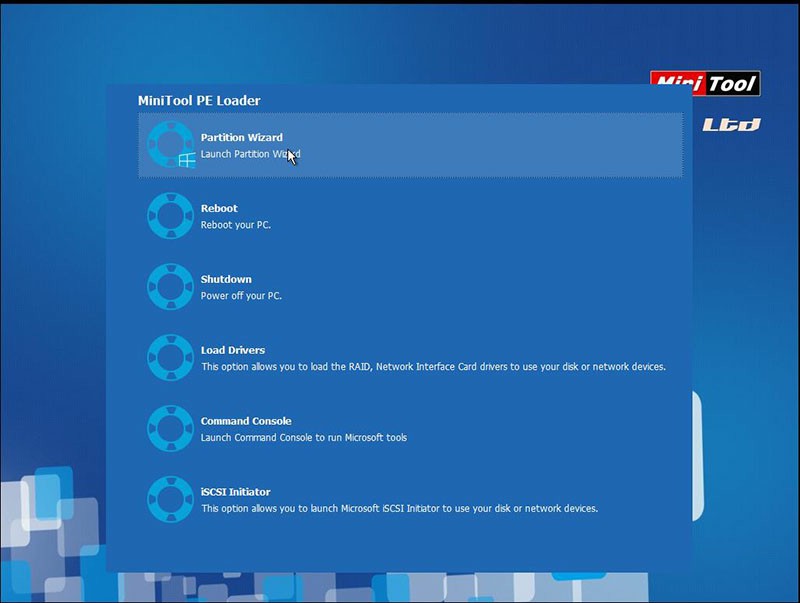

    rebuild MBR 2

    Then, choose a display resolution to enter MiniTool Partition Wizard main interface below:

    rebuild MBR 3

    Next, select the system disk which is suffering MBR damage and click “Rebuild MBR” from the left pane.

    rebuild MBR 4

    At last, click “Apply” button to apply the change. And after application we need to quit from MiniTool Partition Wizard bootable disc and boot from local hard drive.

    This is the end of MiniTool Partition Wizard tutorial to rebuild MBR.
